SKL14 Rail Clip&W14 Tension Clamp

Product Item：008
Category：Rail Clip
Views：1304
skl14 rail clip
Chinese rail clip manufacturer
rail clip manufacturer
rail fastener
Product Manual：our factory produce rail clips including,fast clip,e-clip,E2009,E1809 ,skl12,skl14 clip,W14 tension clamp,deenic clip,nabla clip etc.

BASIC INFO

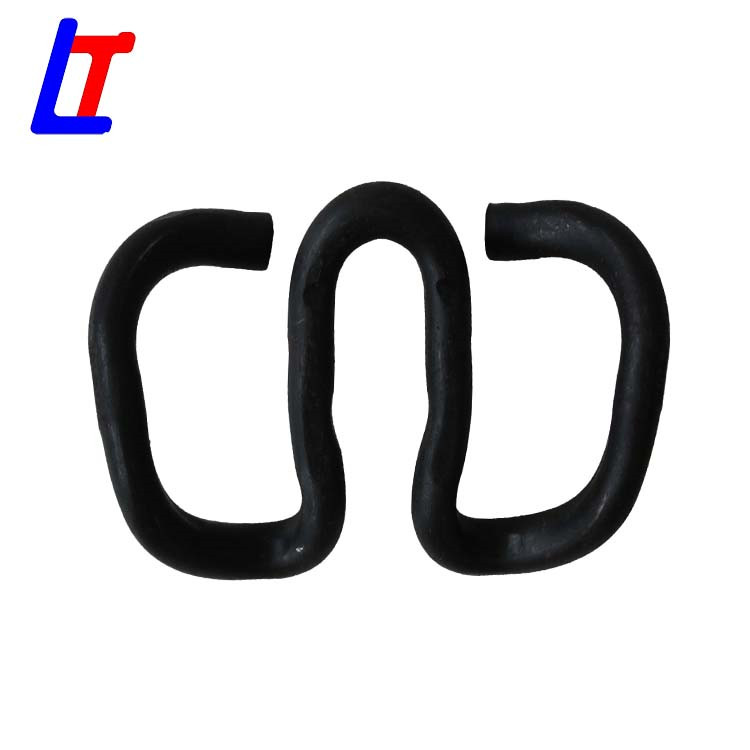

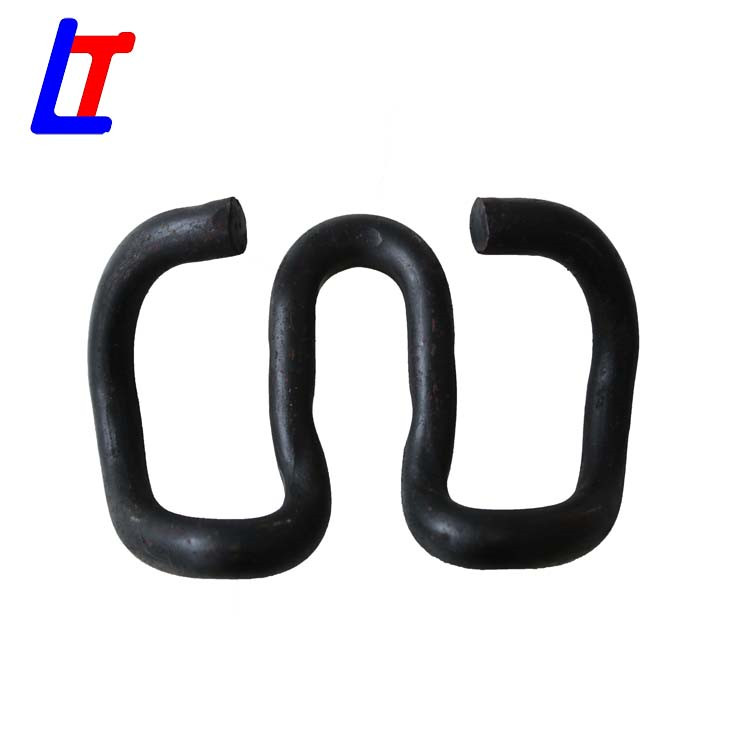

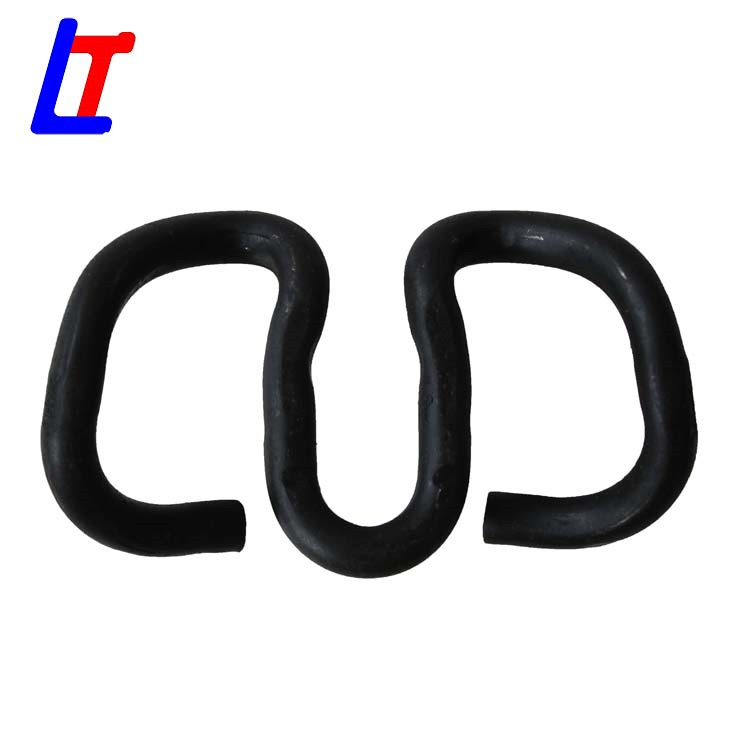

SKL14 rail clip also called W14 tension clamp,It is widely used on W rail fastening system

Technical information as below:

Clamping force:2X10kN

Toe load more than 2750BLS(Deflection:11.1-11.9mm)

Hardness:44-48

Fatigue test:more than 5 millions

Surface treatment:Galvanized coating,Static coating,and other coating as client's required.

Except for SKL14 Rail clip,also we can OEM the below item clips.

Item No	Material	Diameter	Clip length	Clip width	Weight	HRC	Pressure	Fatigue Test	Countries
E1,E2,E3	60Si2Mn	ø18			0.8	44-48	≥9.5KN	5000000 times without break	China
E1609	60Si2Mn	ø18	93±3		0.43	44-48	≥9.5KN	5000000 times without break	Southeast Asia
E1809	60Si2Mn	ø18	104±3		0.62	44-48	≥9.5KN	5000000 times without break	UK,European
E1817	60Si2Mn	ø18	104±3	37.5±3.0	0.62	44-48	≥9.5KN	5000000 times without break
E2001	60Si2Mn	ø18			0.6	44-48	≥9.5KN	5000000 times without break	africa
E2007	60Si2Mn	ø18	105±5	38max	0.62	44-48	≥9.5KN	5000000 times without break	Korea
E2009	60Si2Mn	ø18	106±3	37.5	0.65	44-48	≥9.5KN	5000000 times without break	Brazil,America
E2055	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E2056	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E2063	60Si2Mn	ø20	110.5	53.5	0.8	44-48	≥9.5KN	5000000 times without break	Russia
PR309	60Si2Mn	ø19	130		0.91	44-48	≥9.5KN	5000000 times without break	Russia
PR401	60Si2Mn	ø20	127±3	38.1±3.0	0.97	44-48	≥9.5KN	5000000 times without break	Russia
PR601	60Si2Mn	ø19			0.8	44-48	≥9.5KN	5000000 times without break	Russia
PR85	60Si2Mn	ø19	88±3		0.8	44-48	≥9.5KN	5000000 times without break	Russia
PR415	60Si2Mn	ø20			0.8	44-48	≥9.5KN	5000000 times without break	Russial
PR601	60Si2Mn	ø20				44-48	≥9.5KN	5000000 times without break	Russia
DI	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	China
E18	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E19	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E20	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
SKL1	60Si2Mn	ø13	133±2.3		0.48	44-48	≥9.5KN	5000000 times without break	America,brazil
SKL3	60Si2Mn	ø13	120±2		0.48	44-48	≥9.5KN	5000000 times without break	America,brazil
SKL12	60Si2Mn	ø13			0.53	44-48	≥9.5KN	5000000 times without break	America,brazil
SKL14	60Si2Mn	ø13	155±2		0.53	44-48	≥9.5KN	5000000 times without break	America,brazil
Fast Clip-1508	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
Fast clip-1501	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
Fast Clip-16	60Si2Mn	ø16			0.6	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
