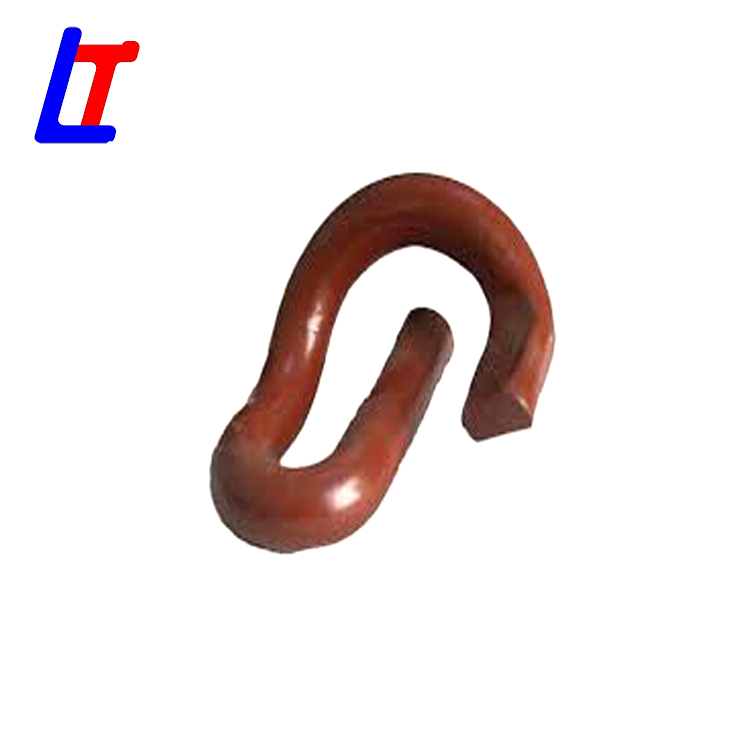

E2055 rail clip

Product Item：0014
Category：Rail Clip
Views：1619
E2055 rail clip
E2055 rail clip manufacturer
Rail E-clip
elastic rail clip
Product Manual：E2055 rail clip is widely used in America,and we had the E-clips Manufacturing experience over 44 years.

BASIC INFO

Rail elastic clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.
LT Factory offer an extensive range of rail clips with optimum quality, these rail clips are designed with high precision and made up of premium grade spring steel. LT Factory has been the largest and most competitive production base of rail clip in China over 42 years’ rail clip producing experience, and have qualification to tender nationally large and medium scaled rail projects. What’s more, our rail clip can be customized according to clients’ requirements.

We can supply the below rail clips:

Item No	Material	Diameter	Clip length	Clip width	Weight	HRC	Pressure	Fatigue Test	Countries
E1,E2,E3	60Si2Mn	ø18			0.8	44-48	≥9.5KN	5000000 times without break	China
E1609	60Si2Mn	ø18	93±3		0.43	44-48	≥9.5KN	5000000 times without break	Southeast Asia
E1809	60Si2Mn	ø18	104±3		0.62	44-48	≥9.5KN	5000000 times without break	UK,European
E1817	60Si2Mn	ø18	104±3	37.5±3.0	0.62	44-48	≥9.5KN	5000000 times without break
E2001	60Si2Mn	ø18			0.6	44-48	≥9.5KN	5000000 times without break	africa
E2007	60Si2Mn	ø18	105±5	38max	0.62	44-48	≥9.5KN	5000000 times without break	Korea
E2009	60Si2Mn	ø18	106±3	37.5	0.65	44-48	≥9.5KN	5000000 times without break	Brazil,America
E2055	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E2056	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E2063	60Si2Mn	ø20	110.5	53.5	0.8	44-48	≥9.5KN	5000000 times without break	Russia
PR309	60Si2Mn	ø19	130		0.91	44-48	≥9.5KN	5000000 times without break	Russia
PR401	60Si2Mn	ø20	127±3	38.1±3.0	0.97	44-48	≥9.5KN	5000000 times without break	Russia
PR601	60Si2Mn	ø19			0.8	44-48	≥9.5KN	5000000 times without break	Russia
PR85	60Si2Mn	ø19	88±3		0.8	44-48	≥9.5KN	5000000 times without break	Russia
PR415	60Si2Mn	ø20			0.8	44-48	≥9.5KN	5000000 times without break	Russial
PR601	60Si2Mn	ø20				44-48	≥9.5KN	5000000 times without break	Russia
DI	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	China
E18	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E19	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
E20	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
SKL1	60Si2Mn	ø13	133±2.3		0.48	44-48	≥9.5KN	5000000 times without break	America,brazil
SKL3	60Si2Mn	ø13	120±2		0.48	44-48	≥9.5KN	5000000 times without break	America,brazil
SKL12	60Si2Mn	ø13			0.53	44-48	≥9.5KN	5000000 times without break	America,brazil
SKL14	60Si2Mn	ø13	155±2		0.53	44-48	≥9.5KN	5000000 times without break	America,brazil
Fast Clip-1508	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
Fast clip-1501	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
Fast Clip-16	60Si2Mn	ø16			0.6	44-48	≥9.5KN	5000000 times without break	Africa,EU,America,brazil
