Material:QT400-15,QT450-10,QT500-7
Finish:Plain,Black,Zinc,HDG,Dacromet
MOQ:1,000 pieces
Supply Capacity:3,000 Tons per Month
Delivery:25 Days after Order
Technical specification with tie plate as below:
| Type | Material | Technical specifications | Surface Treatment | Usage |
| Rail Tie Plate for E-clip | QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required | With E-clip on the tie plate,For BS RAIL and other rails |
| 50S1 tie plate |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
For Itay Mkt |
| Wooden sleeper tie plate | QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
For wooden sleeper use |
| Double tie plate |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
AREMA |
| Sigle tie plate |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
AREMA |
| Tie plate for 7/8" Base Rail |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
FOR 7/8" Base Rail |
|
TR37 Tie plate |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
In specific for 136 RE,115RE,100RE and 90ARA-A rail to apply in deenic or E-clip fasteners |
| Tie plate for poland |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
For light Rail |
| other casting tie plate according to client's required |
QT450-10,QT400-15,QT500-7 |
1,Hardness:170-240HB; 2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA 3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%. 4,The nodularity shall be at least 85% 5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs. |
Black paint or static coating,Galvanized coating or as client's required |
According to client's required |

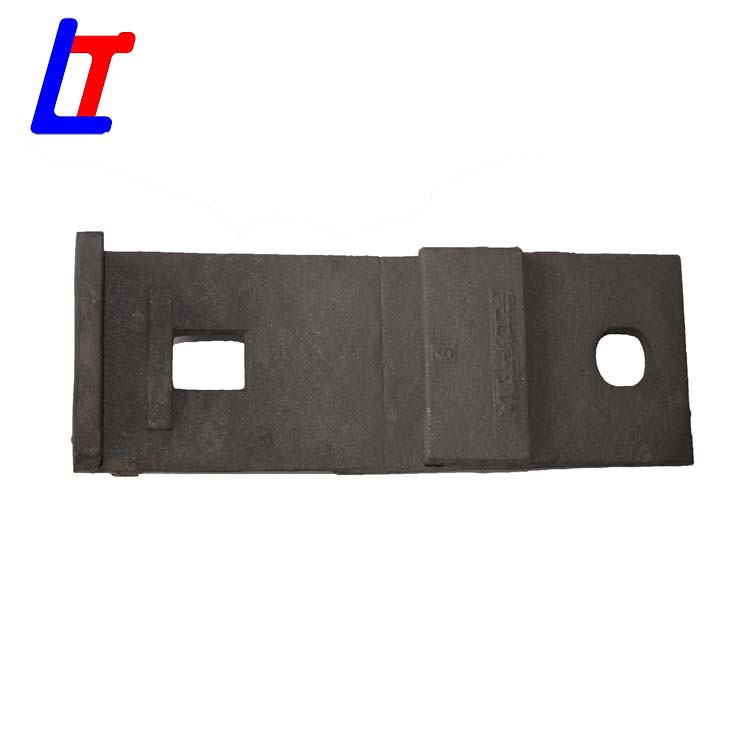

Base tie plate, also called sole plate or baseplate, is a piece of plate made by steel used between the rails and sleeper ties in order to enlarge the bearing touching area and maintain the rail in right gauge all the time. For wooden ties, a baseplate is always fixed with rail spikes or track bolts in holes on the plate.
At our production base for the tie plates, various types are available following standards of AREMA, UIC, BS and others, with either single shoulder plates or double shoulder plates according to customers’ requirements.
- Size: 10-15inch long, for rails of 90RA-A, 100RE, 115-119RE, 132-136RE
- Material: Low carbon steel/high carbon steel, equivalent of customers’ required materials.
- Standard: AREMA
- Processing way: casting, forging or rolling
- Size: for UIC60, UIC54, S48 rails
- Material: Low carbon steel, high carbon steel, casting iron.
- Standard: UIC864-6
- Processing way: casting, forging or rolling
- Size: for 50kg/30kg/37kg rails
- Material: QT450-10 or other low carbon steel
- Standard: GB, JIS E1110
- Processing way: casting, forging or rolling
Linzhou Public Service Railway Equipment Manufacturing Co.,Ltd Has automatic machinery production casting line, new detection equipment and instruments as below:
| Production Equipment | Type | Unit | QTY | Production Capacity | Material |
|
Core shooter |
Z8612B | Set | 4 | 40Ton |
QT450-10;QT500-7 |
|
Automatic shell core machine |
Z9508 |
Set |
1 |
40Ton |
QT450-10;QT500-7 |
| Megatron Pressure Implentation molding machine | Z145W |
Set |
12 |
40Ton |
QT450-10,QT500-7 |
| Electric stove | 1 Ton |
Set |
2 |
40Ton |
QT450-10,QT500-7 |
| Spheroidizing double wire feeder | WX-60T |
Set |
2 |
40Ton |
QT450-10,QT500-7 |
| Crawler shot blasting machine | 600 |
Set |
2 |
40Ton |
QT450-10,QT500-7 |
| Medium Frequency Melting Equipment For Vein Steel Sheel Yoke | 2T |
Set |
4 |
40Ton |
QT450-10,QT500-7 |
| Continus Emission Monitoring System | CEMS |
Set |
2 |
60Ton |
QT450-10,QT500-7 |
| Vertical parting box-less injection moulding machine | ZZ416BC |
Set |
1 |
60Ton |
QT450-10,QT500-7 |
|
Inspect machine |
Type |
Unit |
Qty |
Test Content |
Usage |
|
Magnetic Particle testing machine |
CTW-2000 |
Set |
1 |
Anti-corrosion parts |
all kinds of fasteners |
|
Sulfur dioxide corrosion testing machine |
F-S02-250 |
Set |
1 |
Anti-corrosion parts |
all kinds of fasteners |
|
Smoke Corrosion Testing Machine |
SK-110C |
Set |
1 |
Anti-corrosion parts |
all kinds of fasteners |
|
Box Sand Blasting Machine |
|
Set |
1 |
Anti-corrosion parts |
all kinds of fasteners |
|
Micro computer controlled electronic universal material testing |
WDW-300M |
Set |
1 |
Anti-corrosion parts |
all kinds of fasteners |
Invested 2 billion on this iron casting production line,Strictly in quality.Rail Tie Plate&Base plate,Rail clamp,rail baffle plate,rail shoulder,rail brace we can produce with this machine.If you need,contact us lina@lt-railfastener.com
